제품특징
일자그릴

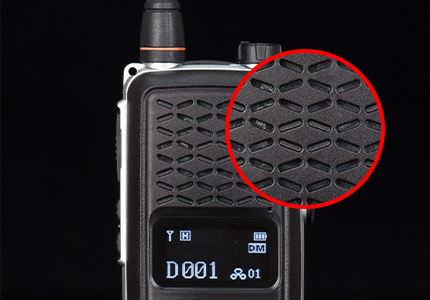

X자그릴
| 일반사양 | |
| Frequency Range |
DX-8100 : 136~174 MHz DX-8200 : 216~224 MHz DX-8400 : 400 ~470 MHz |
|---|---|
| Frequency Stability | ±1.5ppm (-30 to +60℃) |
| Channel Spacing | 512 Channels |
| Digital Vocoder | AMBE++ Voice Compression Algorithm |
| Dimensions | 103mm(H) x 54mm(W) x 34.5mm(D) |
| Weight | 275g |
| Power Source | DC +7.4V Li-ion 2,600mAH Battery |
| Current Drain (maximum) |
Receive mode, rated audio out – 420 (Audio Max) Transmit mode – 1,200mA Standby mode – 100mA |
| 수신기 규격 | |
| Sensitivity | 0.25uV 12 dB SINAD |
|---|---|
| Squelch Sensitivity | 0.22uV 10dB SINAD |
| Selectivity | 65dB (12.5KHz) |
| Spurious and Harmonic Rejetion | 75dB |
| FM Hum and Noise | 40dB (12.5KHz) |
| Audio Output Power | 1 Watt across an 16-ohm load |
| Audio Distortion | Less than 3% at rated output |
| Audio Response | +1, -3 dB from 6dB per octave de-emphasis Characteristic from 300 ~ 3000Hz |
| Input Impedance | 50 ohms |
| 송신기규격 | |
| RF Power Output | 5/1Watt |
|---|---|
| Spurious and Harmonic | 70dB |
| FM Hum and Noise | 40dB (12.5KHz) |
| Audio Distortion | 3% maximum with 1KHz modulation |
| Audio Frequency Response | +1, -3dB from 6dB per octave pre-emphasis Characteristic from 300 ~ 3000Hz |
| Output Impedance | 50ohms |
