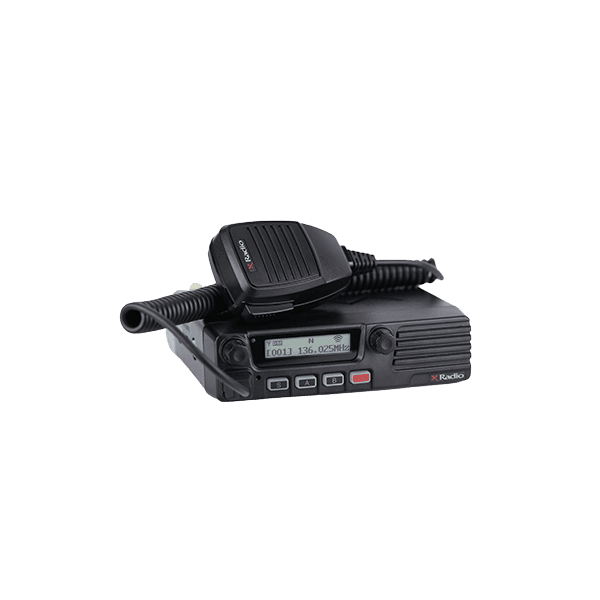

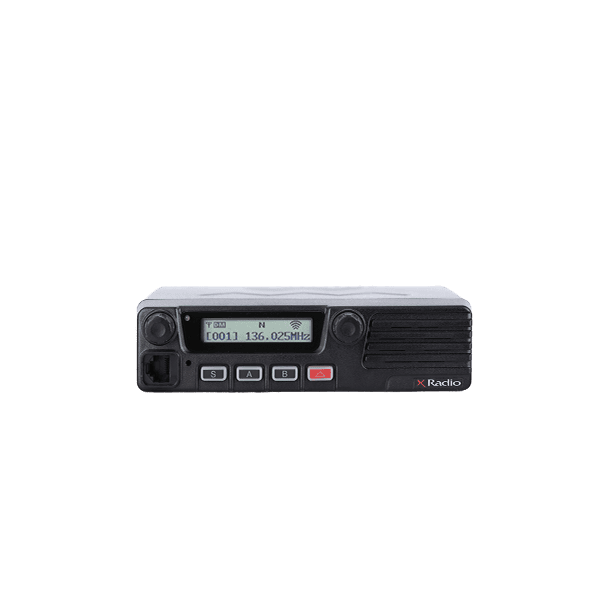

XM-1000/4000

Go to Manual
Go to Catalog

Features

  • VHF (45W) / UHF (40W) maximum transmit
  • 512Channels and 32Groups are selectable.
  • 4W (internal), 8W(external) audio output
  • Built-in Scramble & Compender
  • 53 CTCSS / 208 DCS / 2 Tone / 5 Tone
  • BCL / BCLO / TOT
  • Normal Scan / Priority Scan
  • DTMF ANI Function
  • Emergency & Built-in Emergency
  • Talk Around
  • Remote Function / Horn Alert / Public Address
  • nternal or External Speaker
  • Built-in DSUB15 Accessory Connector
General
XM-1000 VHF 136 ~ 174 MHz
XM-4000 UHF 400 ~ 470 MHz
Channel Capacity 512
Channel Spacing 12.5KHz
Dimensions 165mm(W) x 45mm(H) x 160mm(D)
Dust & Waterproof IP54
Receiver
Sensitivity 0.22uV 12dB SINAD
Squelch Sensitivity 0.20uV 12dB SINAD
Adjacent Channel Selectivity 65dB
Intermodulation 65dB
Spurious Rejection 70dB
S/N Ratio 40dB
Audio Response +1 ~ - 3dB
Audio Distortion 3% maximum with 1KHz modulation
Audio output 1 Watt (16Ω)
Transmitter
RF Output VHF : 5/10/25/50W / UHF : 5/10/20/40W
Spurious 70dB
Adjacent channel Power 65dB
S/N Ratio 40dB
Audio Response +1 ~ - 3dB
Audio Distortion 3% maximum with 1KHz modulation
