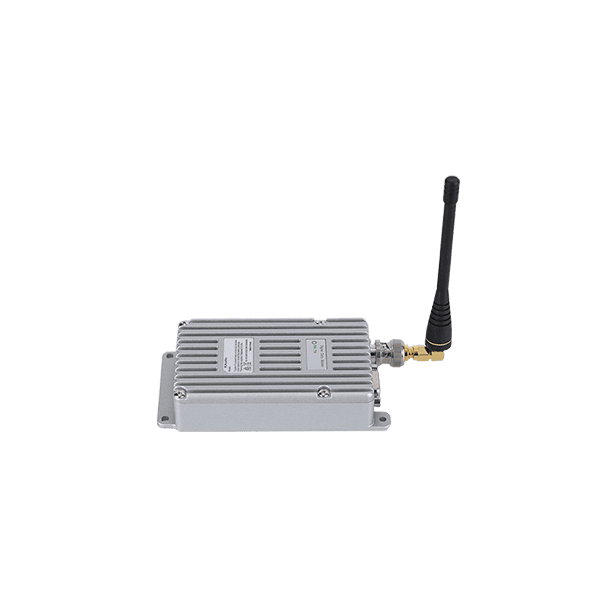

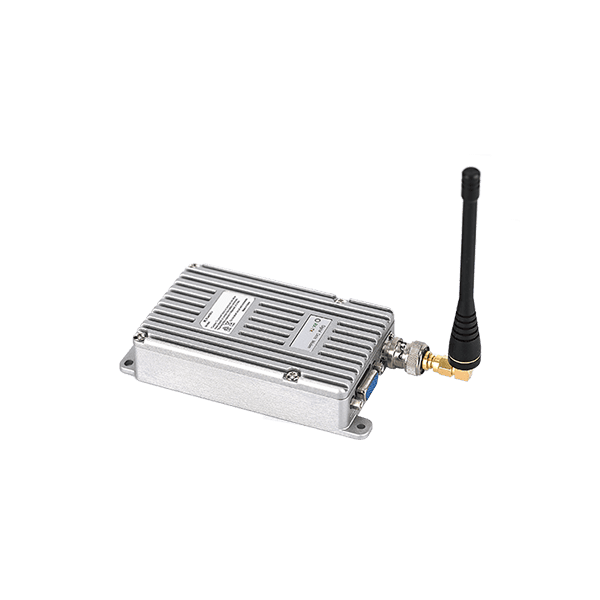

MD-100D/400D

Go to Manual
Go to Catalog

Features

  • Water/Waste Treatment
  • Plant, Oil and Gas Field, SCADA
  • Security/Alarm System
  • Gate Systems, Remote Controls
  • Commercial Sign Control
  • Automatic Vehicle Location
  • Murphy/Kill Switches
  • Weather Monitoring
  • Irrigation Systems
  • Emergency Call Boxes
  • Low Power Repeaters
General
MD-100D 138 ~ 174 MHz
MD-400D 400 ~ 470 MHz
Channel Capacity 32
Zones 16 (1 Zone = Max 32 Channels)
Channel Spacing 12.5KHz(Analog/DMR)
Serial communication Supports 115,200 bps Data Rate
Vocoder AMBE++
Dimensions 121mm(H) x 63mm(W) x 25mm(D)
Digital Protocol Tire1 & Tire2(ETSI TS 102 361)
Dust & Water Intrusion IP54
DC Power DC+12V Operation
Weight 250g
환경 규격
동작 온도 -30℃∼+60℃
방진 방수 IP67
Receiver
Sensitivity 0.22uV 12dB (BER3%)
Adjacent Channel Selectivity 60dB
S/N Ratio 40dB
Audio output 1 Vpp
Transmitter
RF output 10/1Watt (VHF), 5/1W(UHF)
Spurious -36 dBm (< 1GHz) -30 dBm (> 1GHz)
Adjacent Channel Power 60dB
S/N Ratio 40dB
