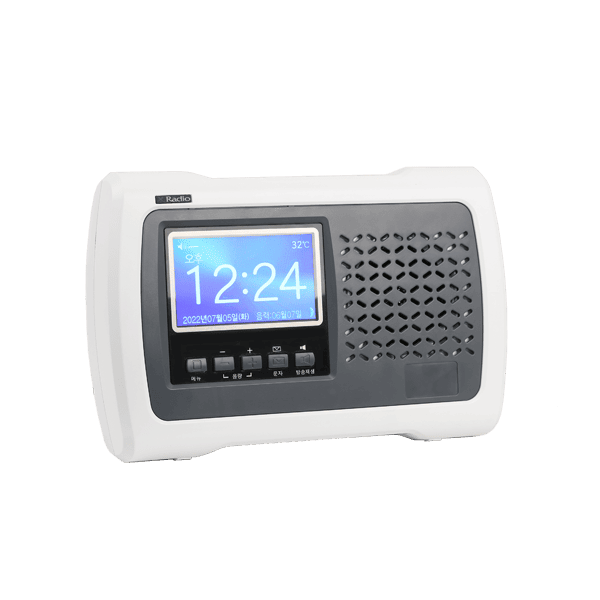

DXB-400R

Go to Manual
Go to Catalog

Features

  • RF Data / Audio Receive
  • Supports four 3.5-inch color LCD screens
  • Temperature Sensor and Display
  • Time/Date Display
  • 5W / 8Ω speaker
  • Automatically save broadcast content
    - Save/play up to 10 voice messages
    - Save/play up to 10 text messages
General
Frequency of use DXB-410R : 136~174 MHZ / DXB-440R :403~470MHZ
Channel spacing 12.5 KHz
Frequency stability ±1.0ppm (-30 ~ +60℃)
Digital vocoder AMBE++
Digital protocol Tier1 & Tire2 (ETSI TS 102 361)
Operating temperature -30℃ ~ +60℃
Size 280(W) x 71(D) x 160(H)㎜
Power supply DC+12V/1A
Receiver
Sensitivity 0.22uV BER 3%
Selectivity 65dB
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
S/N Ratio 40dB
Audio characteristics +1 ~ -3dB
Audio output 5W / 8Ω
DC 12V Adopter
×
