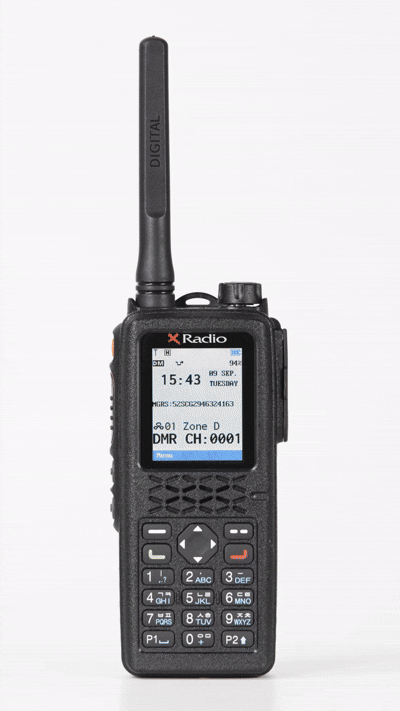

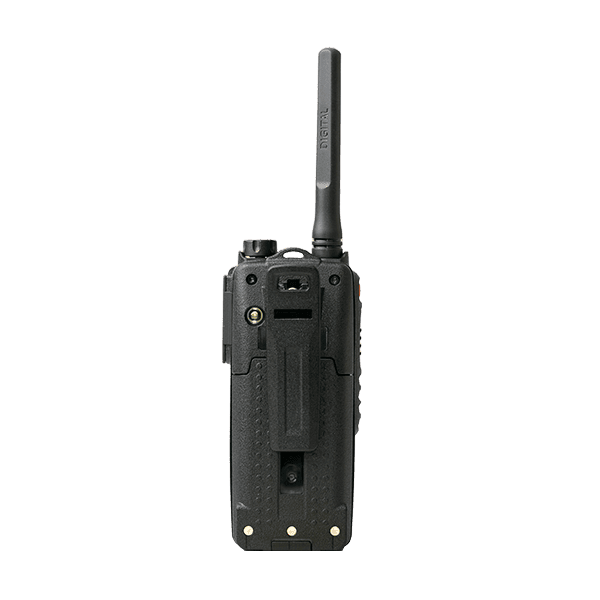

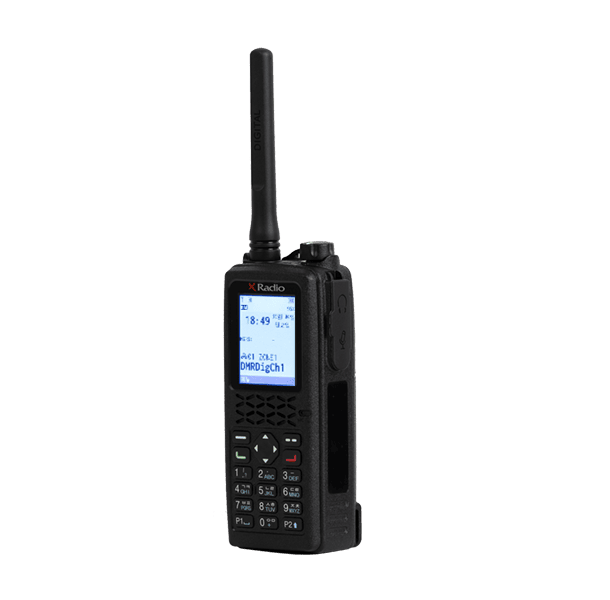

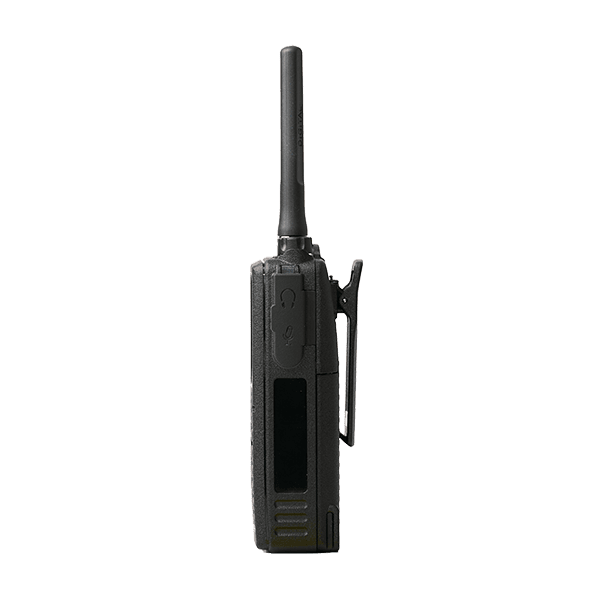

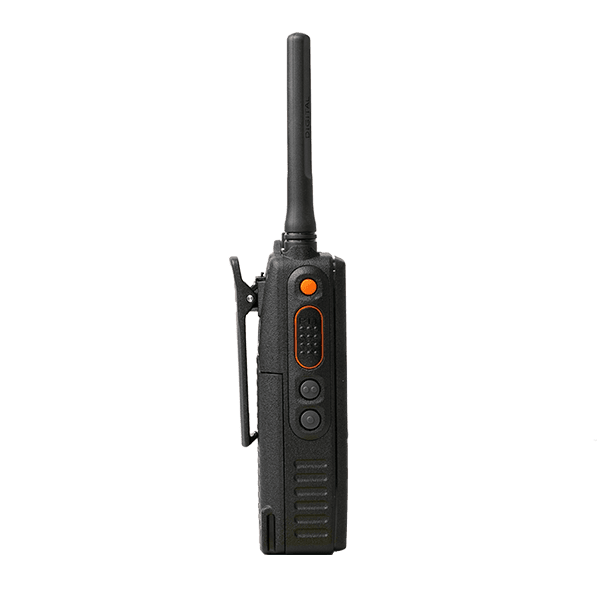

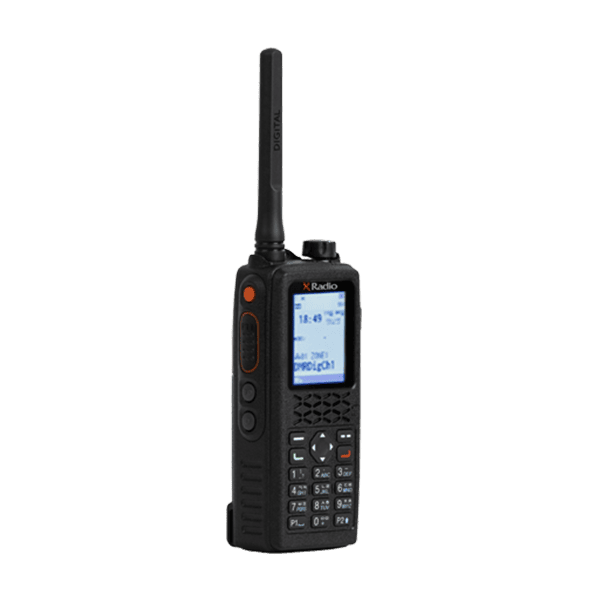

DX-9100/9400

Go to Manual
Go to Catalog

Features

  • Enable transmit output 5/1W selection
  • ETSI Standard DMR Protocol Tier 1, 2
  • Supports up to 1,024 channels
  • Dual mode (Analog & DMR) operation
  • Remote Stun/Release/Erase function of the Radio
  • Send and receive short (up to 40 characters) text messages of up to 20 sentences.
  • Message Edit/Lone Worker/Man down/Talk around/Multi-Scan/Emergency Call
  • Adjustment of 8 steps from adoption of 2inch TFT LCD Display
  • Built-in LED Flashlight
  • Transmit intercept and priority call capabilities
  • Encryption Features (AES256, DMRA256, KCMVP)
  • SFR(Single Frequency Repeater)
  • Support for GPS / GLONASS / GALILEO
  • Military Coordinate(MGRS) conversion of satellite navigation signals - Option
  • Etiquette(Vibration) Features
  • Waterproof UDC accessory connector applied
  • Apply wall-mounted belt clip
  • Electronic Volume Control
  • MIL-STD-810G,H, IP67 (waterproof)
  • DC 7.2 V 3,350mAH Lithium Ion Secondary Battery
  • FCC, IC, CE-RED & KC certification
General Specification
DX-9100 VHF 136 ~ 174 MHz
DX-9400 UHF 400 ~ 470 MHz
Frequency Stability ±1.0ppm
Temperature operation -30℃ ∼ +60℃
Channel Capacity 1,024
Zone 64 (1 Zone = Max 1,024 CH)
Channel Spacing 12.5KHz
Digital Vocoder AMBE++
Dimensions 113mm(H) x 54mm(W) x 35mm(D)
Battery Capacity DC+7.2V 3,350mAH Li-ion Battery
Weight 344g
Environmental
Military Standard MIL-STD-810G/H
Dustproof & Waterproof IP67
Receiver
Sensitivity 0.22uV 12dB (BER3%)
Adjacent Channel Selectivity 60dBc
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
S/N Ratio 40dB
Audio Response +1, -3 dB from 6dB per octave de-emphasis Characteristic
Audio output 1 Watt (16Ω )
Transmitter
RF Power 5/1Watt
Adjacent Channel Power 60dBc
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
Audio Response +1, -3 dB from 6dB per octave Pre-emphasis Characteristic
S/N Ratio 40dB
body
XBD-260 battery
Charger
Antenna
Beltclip
×
