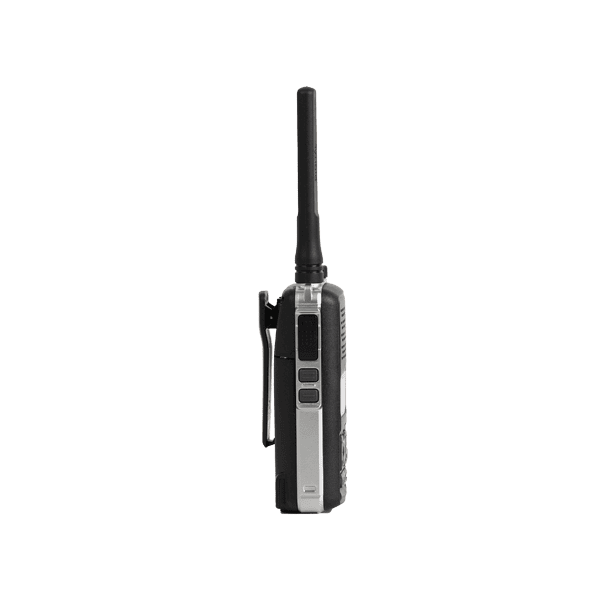

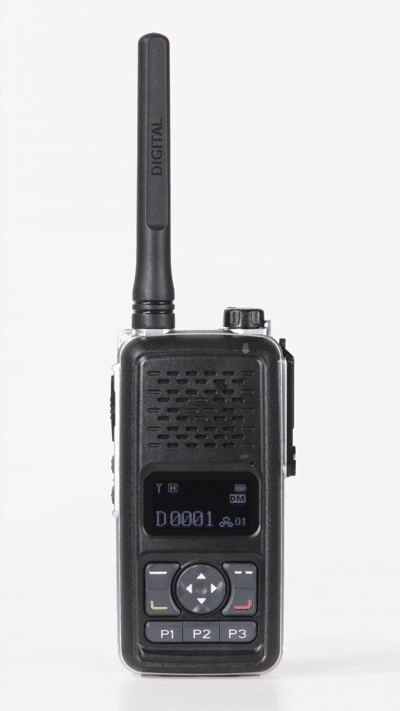

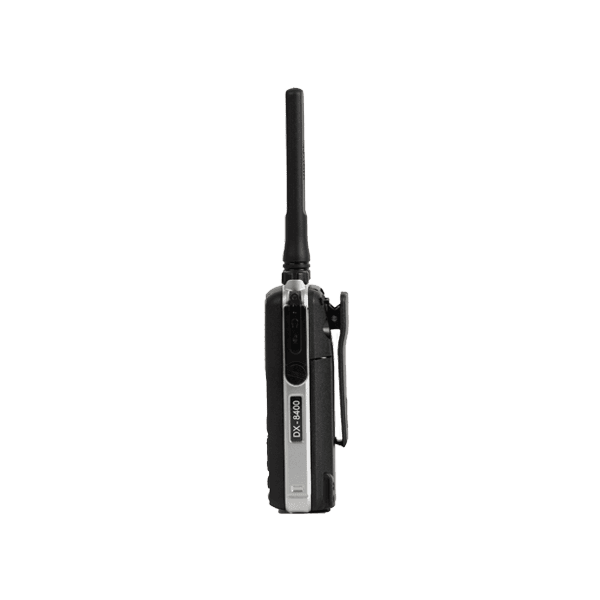

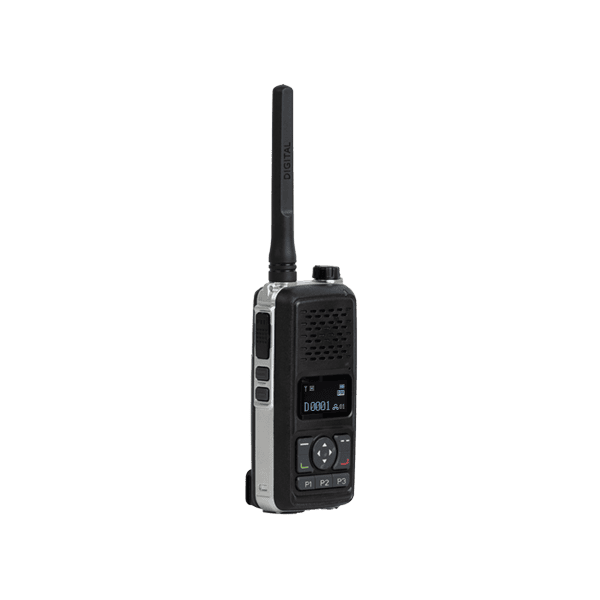

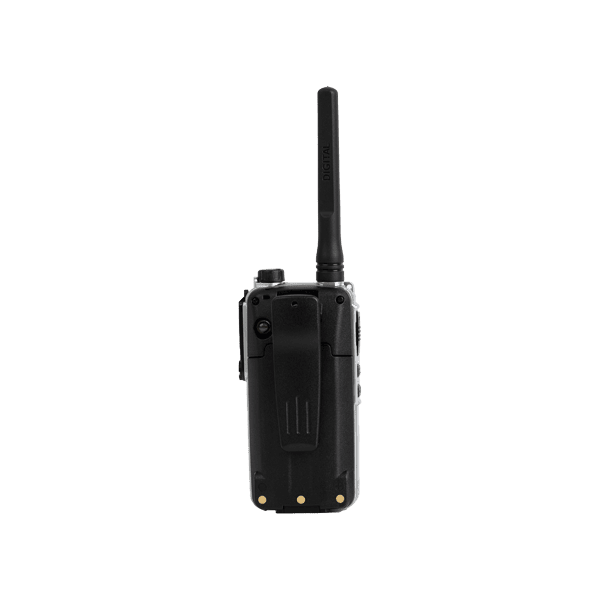

DX-8100/8400

Go to Manual
Go to Catalog

Features

  • Selectable transmission output of 4.8/1W
  • ETSI standard DMR protocol Tier 1, 2
  • Supports up to 1,024 user channels
  • Dual mode (Analog & DMR) operation
  • Call recording and playback function
  • Radio remote lock (Stun)/unlock (Revive) function
  • Short text message (Up to 40 characters) sending and receiving function
  • Lone worker function
  • OLED display / built-in LED flashlight
  • Transmission Interception and priority call features – optional
  • Encryption function (AES 256, DMRA AES256) – optional
  • SFR (Single frequency repeater) – optional
  • Man down function / GPS function - optional
  • Etiquette (Vibration) function - optional
  • MIL-STD-810F/G
  • Waterproof UDC accessory connector applied
  • DC 7.4V 2,600mAH lithium-ion battery
General Specification
DX-8100 VHF 138 ~ 174 MHz
DX-8200 VHF 216 ~ 224 MHz
DX-8400 UHF 400 ~ 470 MHz
Frequency Stability ±1.5ppm (-30 to +60℃)
Channel Capacity 1,024
Zones 64 (1 Zone = Max 1,024 Channels)
Channel Spacing 12.5KHz
Digital Vocoder AMBE++
Size 113mm(H) x 54mm(W) x 35mm(D)
Digital Protocol Tire1 & Tire2(ETSI TS 102 361)
Battery DC+7.2V 2,600mAH Li-ion(standard) / DC+7.2V 3,350mAH Li-ion(Option)
Weight 290g
Environmental
Operating Temperature -30℃ ∼ +60℃
Military Standard MIL-STD-810F/G
Dust & Waterproof IP54,IP67
Receiver
Sensitivity 0.25uV 12dB (BER3%)
Adjacent Channel Selectivity less than 60dB
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
S/N Ratio 40dB
Audio Response +1 ~ - 3dB
Audio output 1 Watt (16Ω )
Transmitter
Transmit Output 4.8/1Watt
Adjacent Channel Selectivity ＜-60dBc
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
Audio Response +1 ~ -3dB
S/N Ratio 40dB

XB-2600D battery

Antenna

XC-200D charger

Leather case
Belt Clip
Hand strap
12V1A Adapter
×
