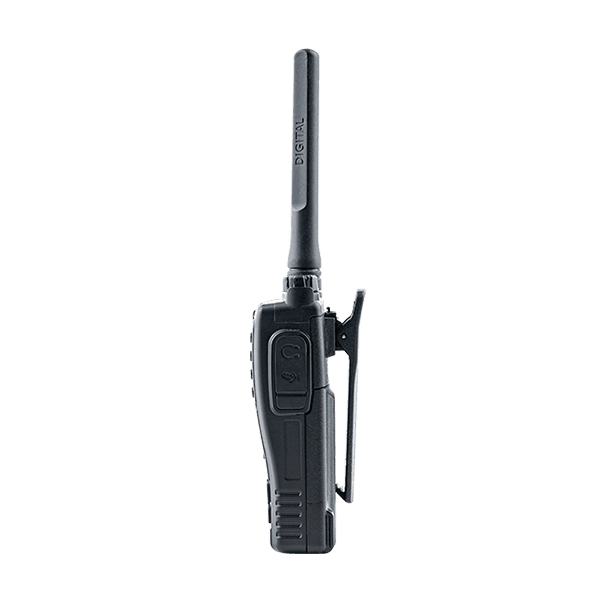

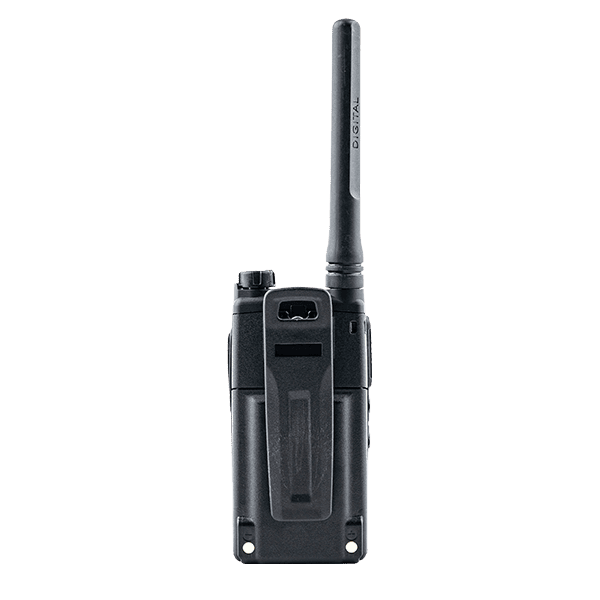

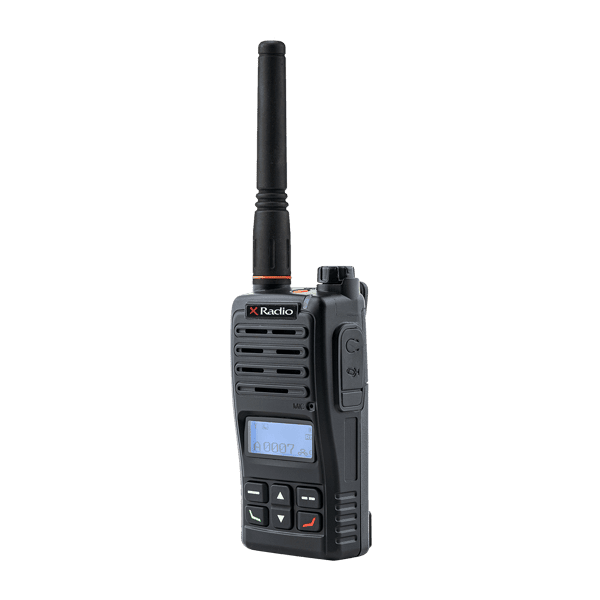

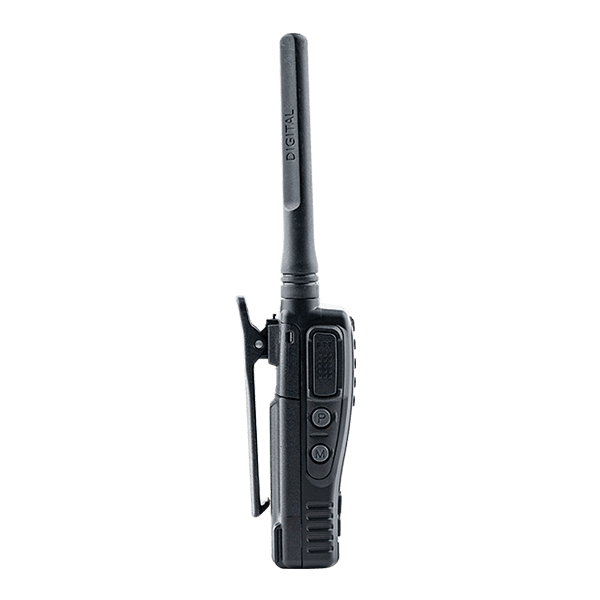

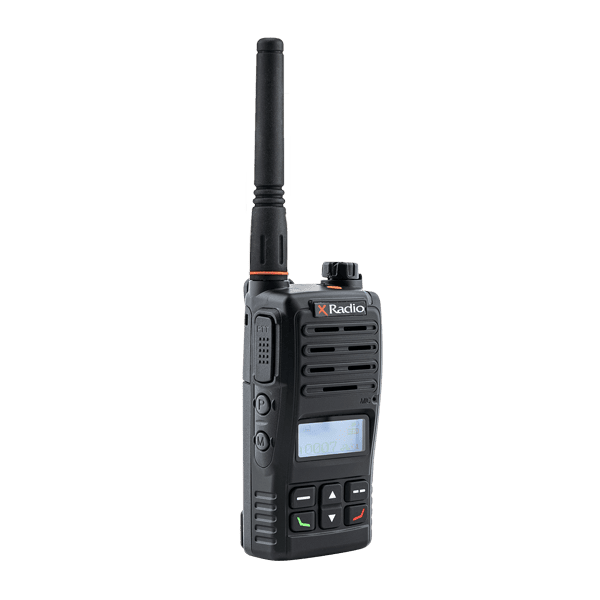

DX-500

Go to Manual
Go to Catalog

Features

  • Dual Mode(Analog / DMR) Operation
  • ETSI standard DMR protocol Tier 1, 2
  • TDMA Direct Mode (DMR)
  • 512 Channel Capacity
  • Remote Stun / Revive / Monitor function
  • Short message sending and receiving function
  • Lone worker function
  • VOX / BCL / BCLO / TOT
  • Transmission Interception and Priority Calling Features - License Option
  • AES256 Voice Encryption Mode
  • Electronic volume voice control function
  • Emergency call siren function
  • Bright and clear LCD display
  • IP54 dustproof and waterproof, DC +3.7V 2,000mAH
General
DX-510,DX-540 140~174 MHz,410~460MHz
Channel Capacity 512
Channel Interval 12.5KHz(DMR)
Frequency Stability ±1.5ppm(-30℃∼+60℃)
Digital Vocoder AMBE++
Size 98mm(H) x 51mm(W) x 26mm(D)
Digital Protocol Tire1 & Tire2(ETSI TS 102 361)
Dustproof and waterproof IP54, IP67 (optional)
Battery DC+3.7V 2,000mAH Li-ion
Weight 152g
환경 규격
동작 온도 -30℃∼+60℃
방진 방수 IP67
Receiver
Sensitivity 0.25uV 12dB (BER3%)
Selectivity 60dB
Spurious and Harmonic Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
S/N Ratio 40dB
Audio Response +1 to - 3dB
Audio Output 1 Watt (8Ω)
Transmitter
RF Output 3/1Watt (digital)
Adjacent channel leakage power 60dB
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
Audio Response +1 to -3dB
S/N Ratio 40dB

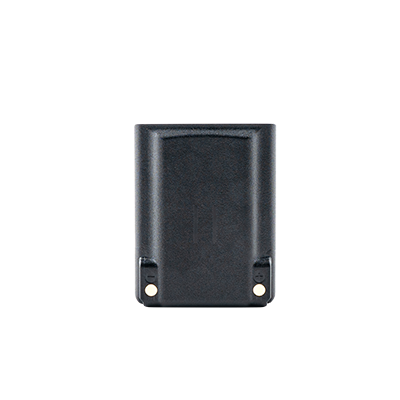

XSB-Battery

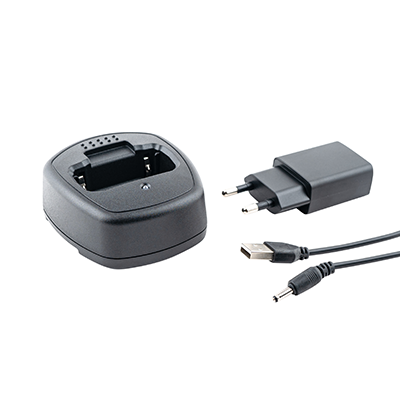

Charger set
Beltclip
×
