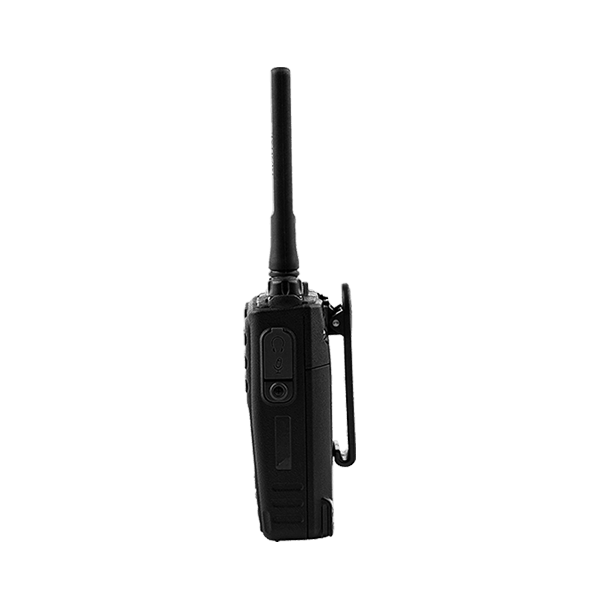

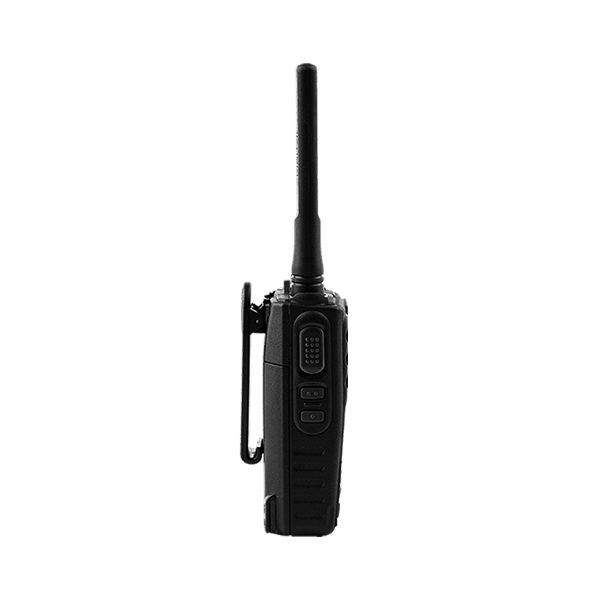

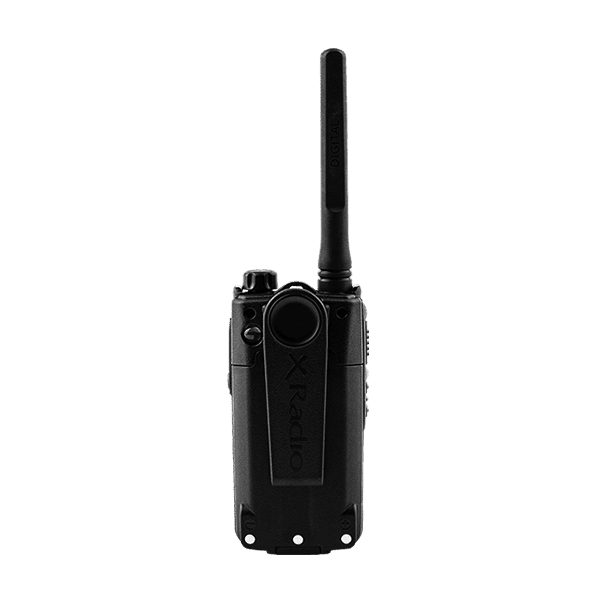

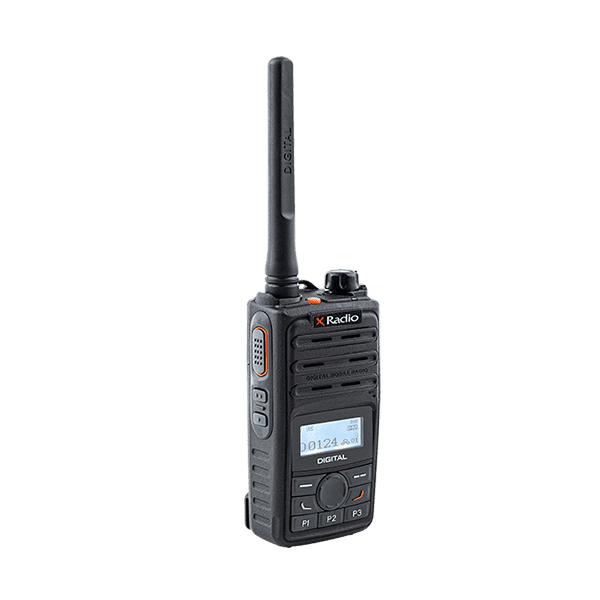

DS-9000

Go to Manual
Go to Catalog

Features

  • Selectable transmission output of 4.8/1W .
  • ETSI standard DMR protocol Tier 1, 2
  • Supports up to 2,500 user channels
  • Call recording and playback function
  • Radio remote lock (Stun)/unlock (Revive) function
  • Short text message (Up to 40 characters) sending and receiving function
  • Lone worker function
  • LCD display / built-in LED flashlight
  • Electronic volume control
  • Transmission Interception and priority call features – optional
  • Encryption function (AES 256, DMRA AES256) – optional
  • Man down function / GPS function - optional
  • IP67 (optional), IP55 (dustproof, waterproof)
  • DC 7.2V 2,600mAH lithium-ion battery
General Specification
DS-9000 UHF 400 ~ 470 MHz
Frequency Stability ±1.0ppm(-30℃∼+60℃)
Channel Capacity 2,500
Zones 64 (1 Zone = Max 1,024 채널)
Channel Interval 12.5KHz
Digital Vocoder AMBE++
Digital Protocol Tire1 & Tire2(ETSI TS 102 361)
Size 105mm(H) x 54.5mm(W) x 35.5mm(D)
Battery DC+7.2V 2,600mAH Li-ion
Weight 260g
Environmental
Operating Temperature -30℃∼+60℃
Dustroof & Waterproof IP55
Receiver
Sensitivity 0.25uV 12dB (BER3%)
Selectivity 60dB
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
S/N Ratio 40dB
Audio Response +1 ~ - 3dB
Audio Output 1 Watt (16Ω )
Transmitter
RF Output 4.8/1Watt
Adjacent channel leakage power 60dB
Spurious Rejection -36 dBm (＜1GHz) -30 dBm (＞1GHz)
Audio Response +1 ~ -3dB
S/N Ratio 40dB
XBD-260 Battery
Antenna
XC-200D Charger
Leather case
Belt Clip
Hand strap
12V1A Adapter
×
